- Simple Setting and Installation
To go to Setting Menu, touch the Time, Pressure, and Temperature area. Make settings with the use of the Up/Down button on the right. - Wide Entry Door
Wide entry for easy entrance - One-Touch Therapy Mode
With the use of five therapy protocols built in program, it is possible to set up a therapy mode for a patient simply. - All-in-One Internal Display
The display integrated with interphone is applied. Therefore, any unnecessary receiver is removed, and more convenient communication is supported. In addition, it is possible to control pressure, time, and temperature inside. - Liquefied Oxygen Connectable
It is possible to connect liquefied oxygen instead of oxygen generator. (If necessary) - Emergency Pressure Reset Valve
Emergency valve installed for decompression intuitively

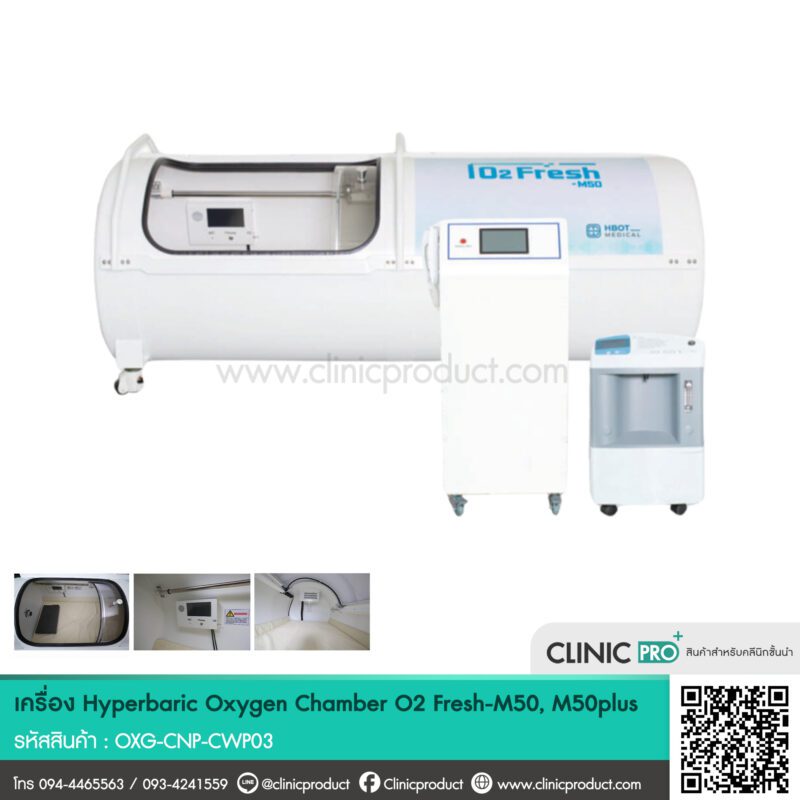

SPECIFICATION
| CHAMBER | ||
|---|---|---|
Model |
O₂ FRESH-M50 | O₂ FRESH-M50 plus |
Usage |
One patient | One patient |
Operation Pressure |
10 ~ 50kPa (1.1~1.5ATA) | 10 ~ 50kPa (1.1~1.5ATA) |
Size |
2200 x 800mm | 2200 x 920mm |
Weight |
125kg | 150kg |
Material |
Aluminum | Aluminum |
| SYSTEM | |
|---|---|
Flow Rate |
100L / Min |
Voltage |
220/110VAC, 50/60Hz |
Power Consumption |
950VA |
Size |
94Kg |
Weight |
94Kg |
Material |
Steel |
| OXYGEN GENERATOR | |
|---|---|
Oxygen Flow Rate |
1~5L / Min |
Oxygen Concentration |
93% ± 3% |
Voltage |
220VAC, 50/60Hz |
Power Consumption |
270W |
Noise |
Less than 45db |
Size |
400(W) x 300(D) x 510(H)mm |
Weight |
16.5kg |
